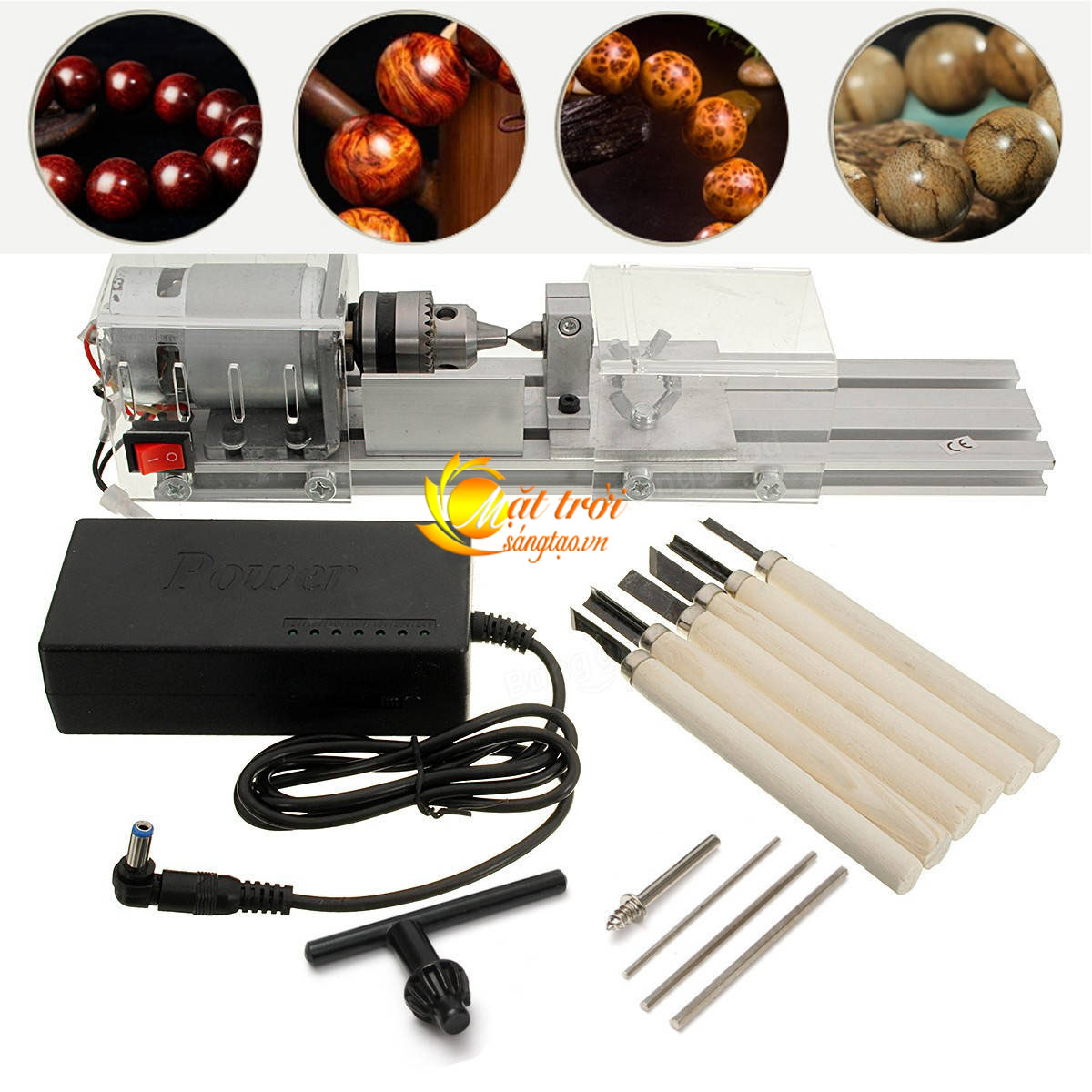

Máy tiện mini


1.500.000 ₫ 990.000 ₫

Máy tiện mini dùng cho gia công chi tiết nhỏ, độ chính xác cao. Update nhiều phụ kiện tiện ích


Máy tiện mini đa năng

Máy tiện mini dùng cho gia công chi tiết nhỏ, độ chính xác cao

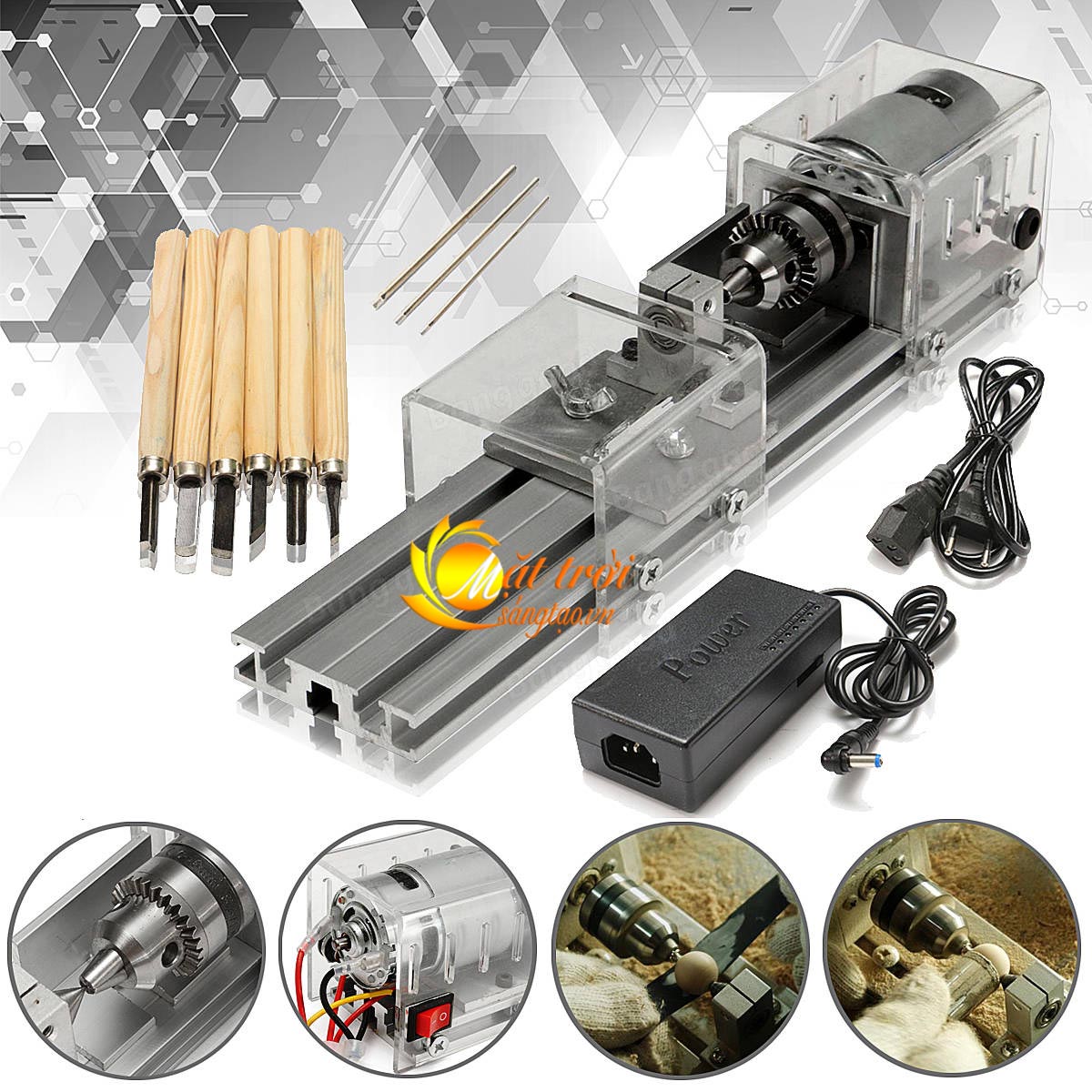

may-tien-mini_2

Các tính năng:
– Độ chính xác cao, ổn định, tiếng ồn thấp;
– Thiết kế cho những người đam mê chế tác thủ công DIY tại nhà, máy nhỏ gọn
– Thiết kế vỏ và chắn che bụi trong suốt, thông thoáng giúp dễ dàng thao tác
– Động cơ mô men xoắn lớn.

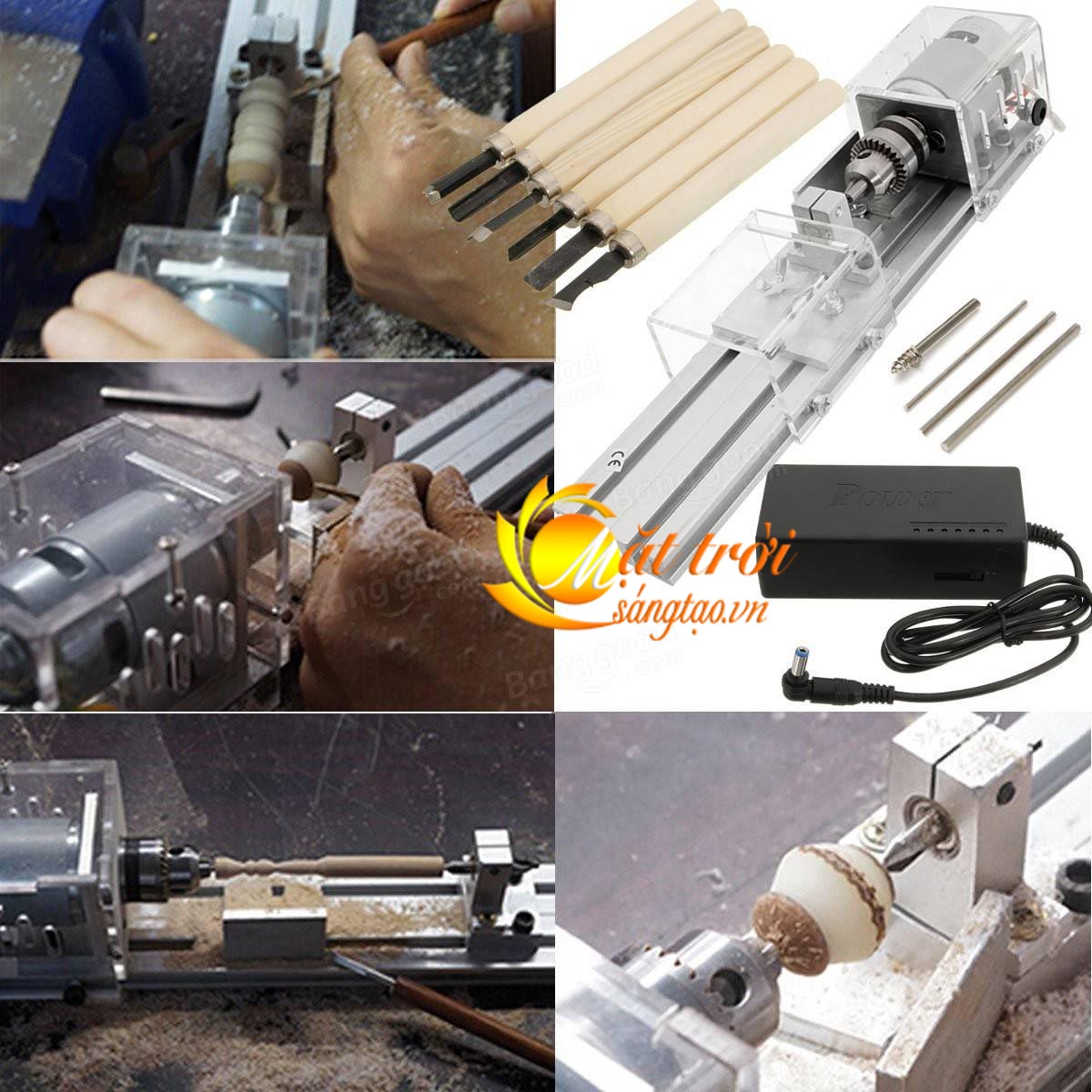

may-tien-mini_1 may-tien-mini_3

Thông số kỹ thuật:
Nhãn hiệu: Raitool
Mẫu: LB-01
Chất liệu: hợp kim nhôm và acrylic
Công suất: 80-100W
Điện áp: 24V DC
Tốc độ: 2000-8000 vòng / phút, tốc độ cấp 7
Kích thước: 305 * 58 * 65mm
Đường kính tiện lớn nhất: 55mm
Chiều dài kẹp tối đa: 120mm
Phạm vi mũi kẹp: 0.6-6mm

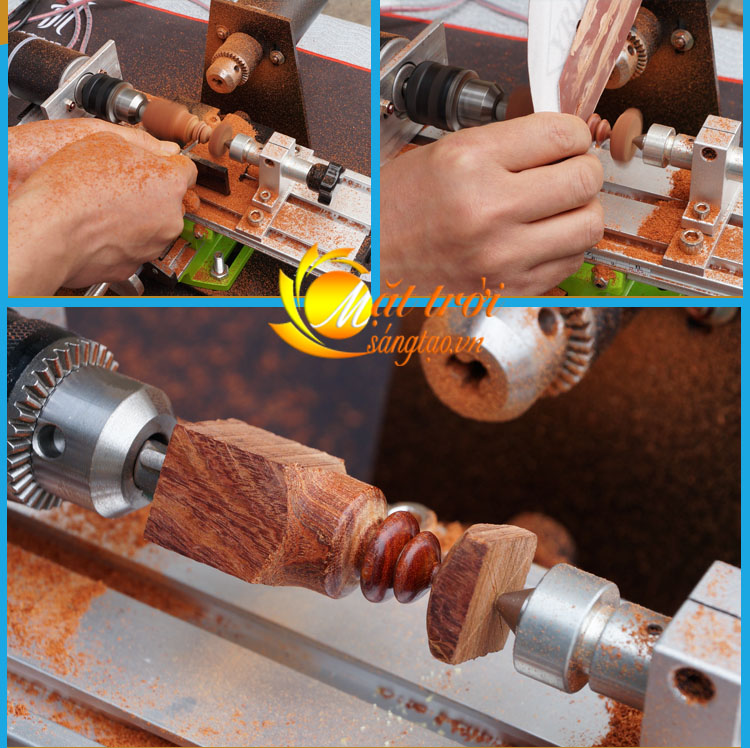

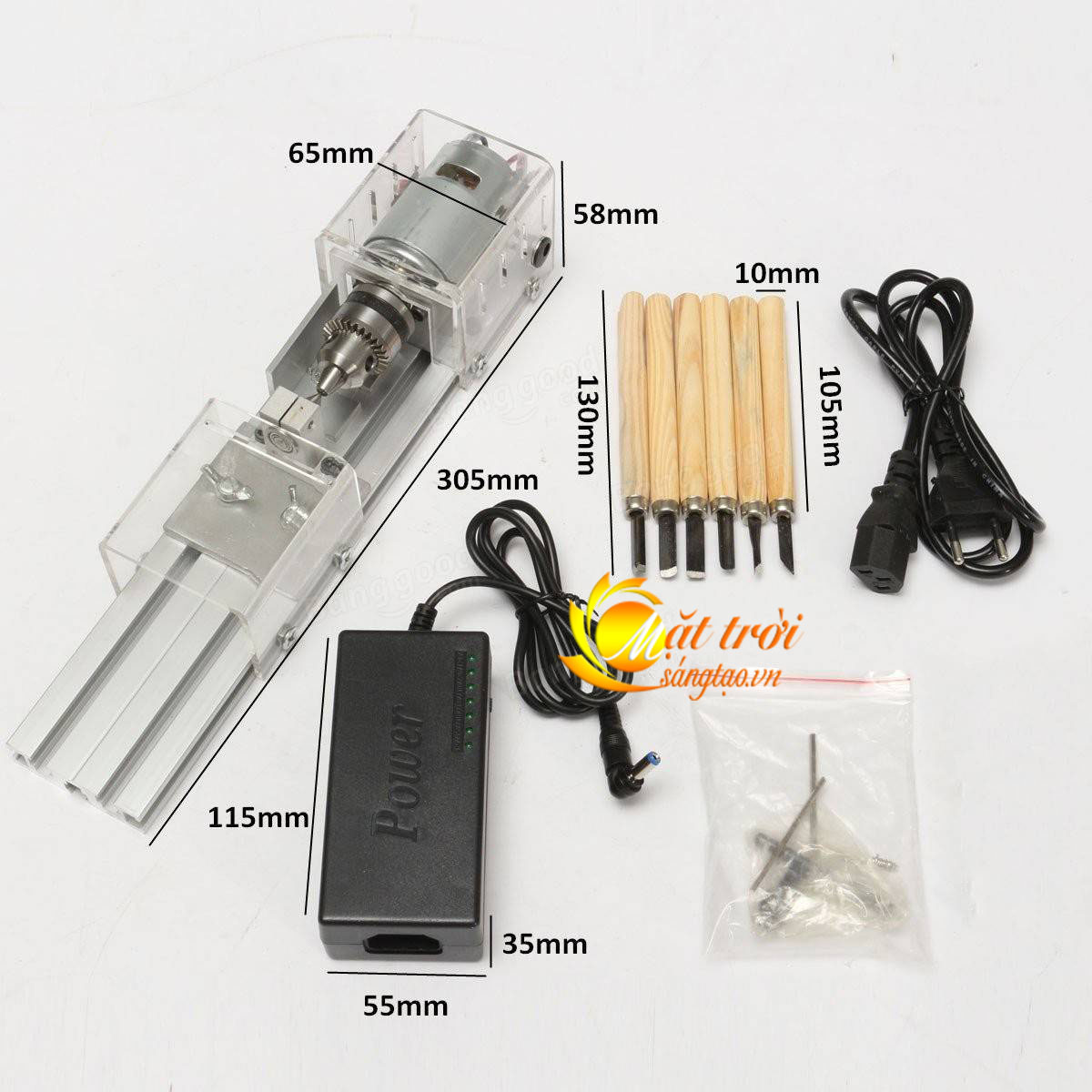

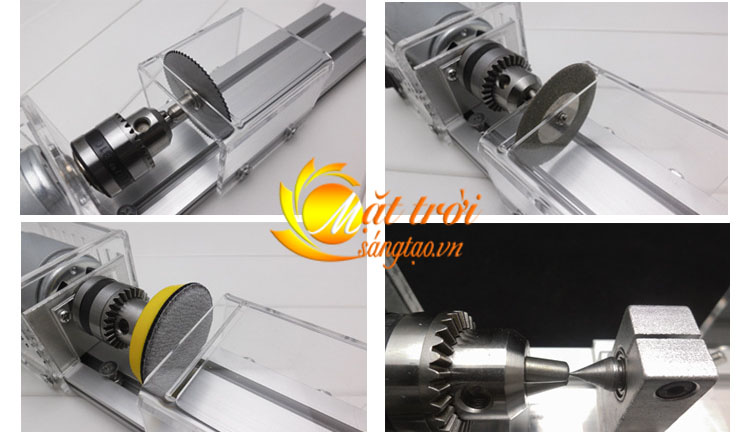

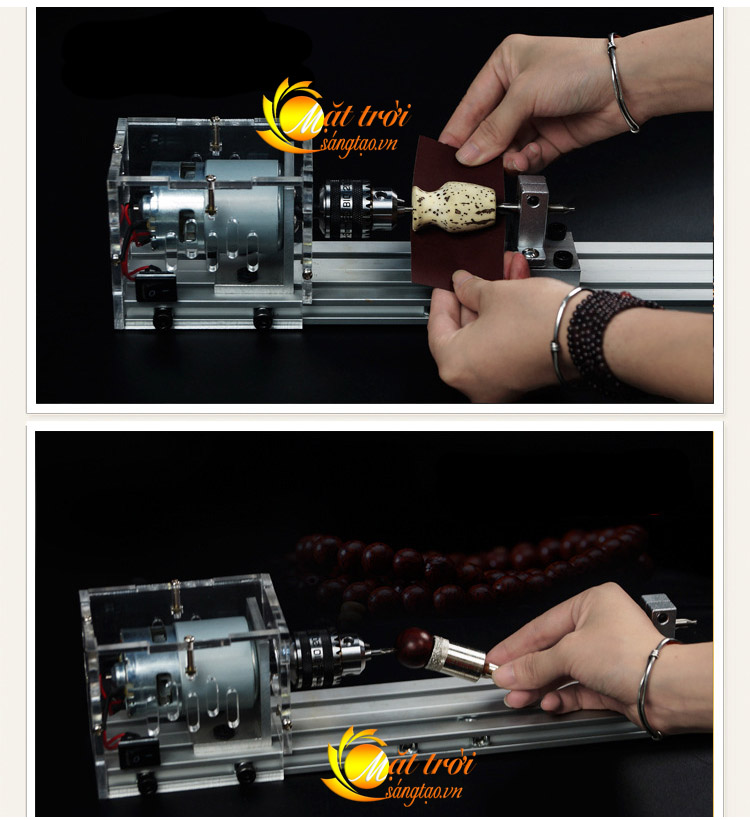

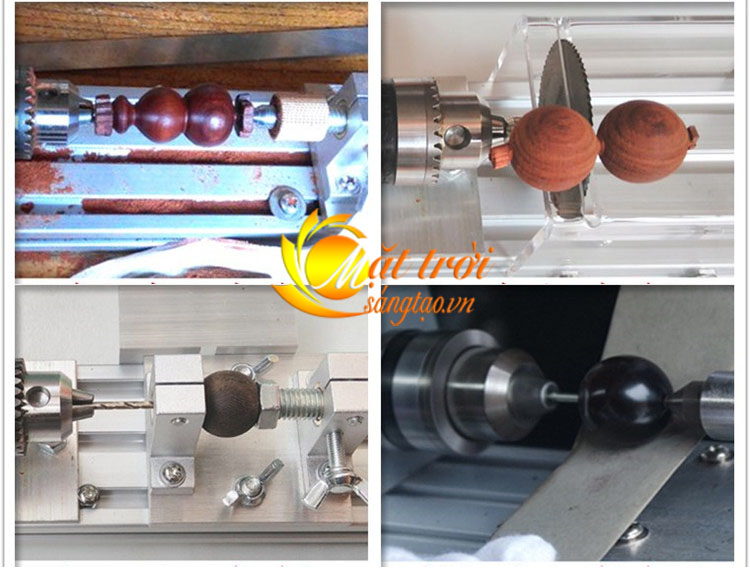

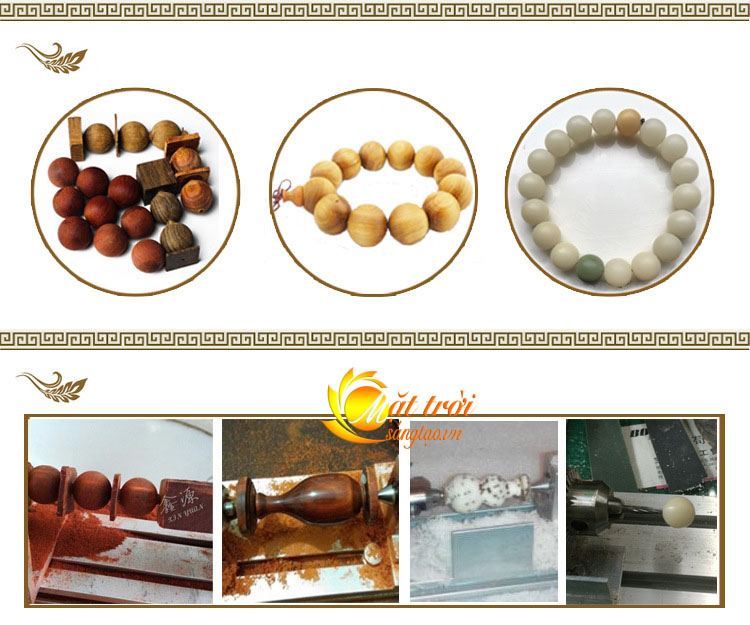

may-tien-mini_4 may-tien-mini_5 may-tien-mini_6 may-tien-mini_7 may-tien-mini_8 may-tien-mini_9 may-tien-mini_10



Từ ngày 10/04/2018 tới hết 30/04/2018 khi mua 1 máy tiện mini được tặng kèm 1 bộ 6 mũi tiện trị giá 100.000đ

may-tien-mini_11





Specifications:
Brand: Raitool
Model: LB-01
Material: Aluminum Alloy and Acrylic
Power: 80-100W
Voltage: 24V DC
Speed: 2000-8000 r / min, 7 grade speed
Size: 305* 58 * 65mm
The theoretical maximum turning diameter: 55mm
The theoretical maximum clamping length: 120mm
Chuck clamping range: 0.6-6mm

Power Adapter:
Input: AC110V- 240V~50/60Hz 1.5A max
Output:12/15/16/18/19V 4.5A max; 20/24V 4A max
Wire length:1.1m+1.1m

Features:
– High-precision, stability, low noise;
– Designed for the home DIY enthusiasts, small and portable, strong power;
– Transparent plexiglass shield, super convection cooling holes;
– Large torque ball bearing motor.

Precautions:
1.If the user does not have lathe base experience, when used, should follow: low speed, slowly, cautiously and other security operations.
2.The speed can be adjusted in 4000-8000R, cut wood should not exceed 4000, grinding can use higher speed.
3.Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4.If not a cylinder, the speed should be reduced.
5.Tailstock bearing without lock tight.
6. When using a knife, locking the bottom of screw, location should be away from timber 1-1.5cm.
7.If you do not really understand the operation, it is best to consult a professional person.

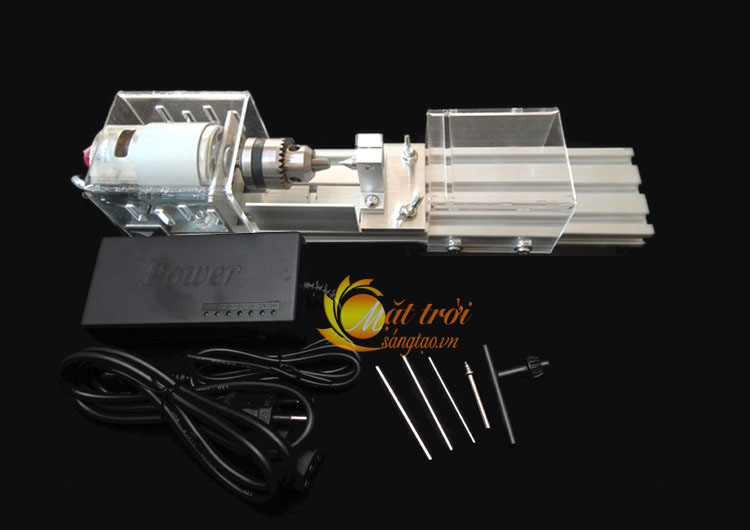

Package includes:
1x Raitool LB-01 Mini Lathe Beads Machine
1x Power Adapter

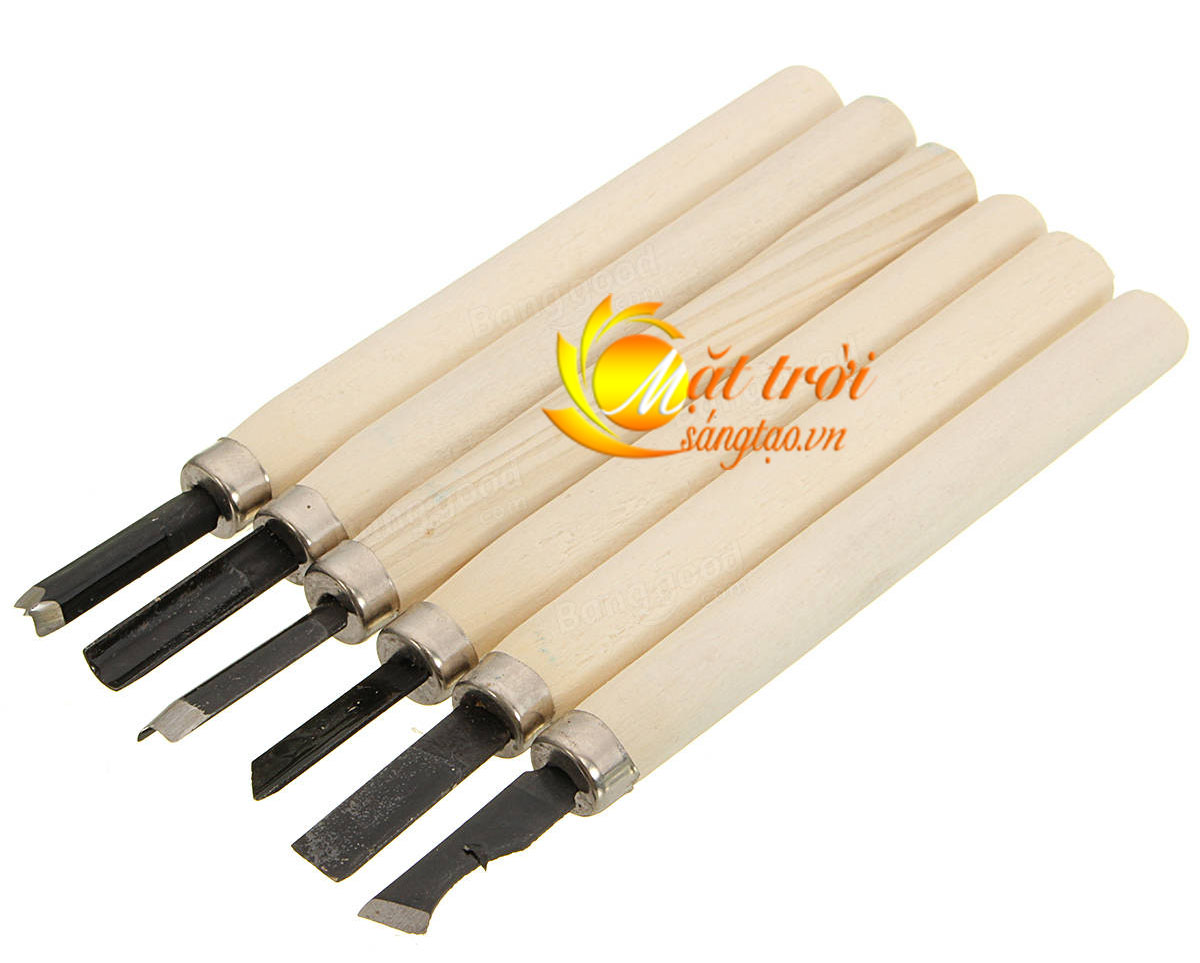

6x Wood carving set
3x Hex shanks(1.5mm,2mm,2.5mm)

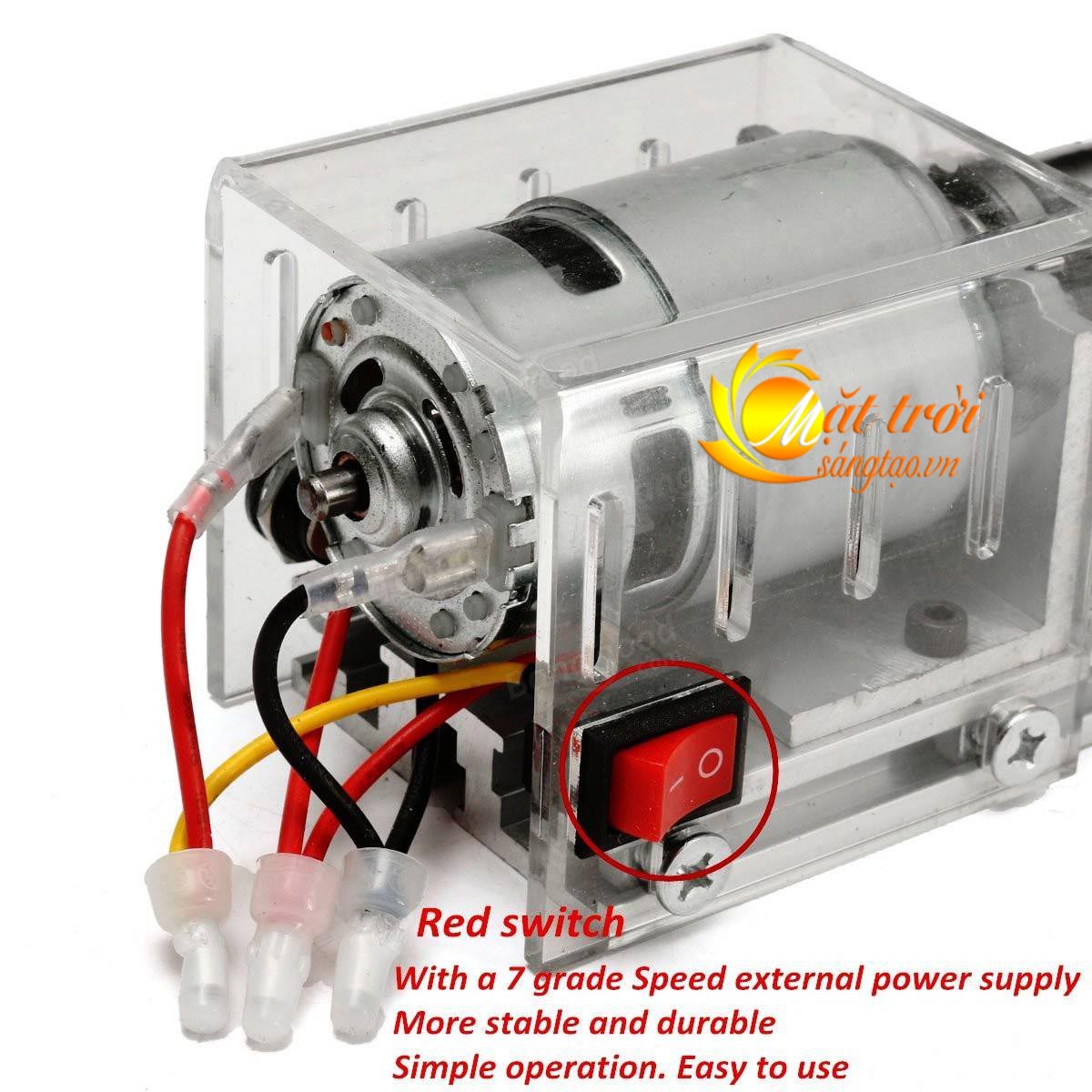

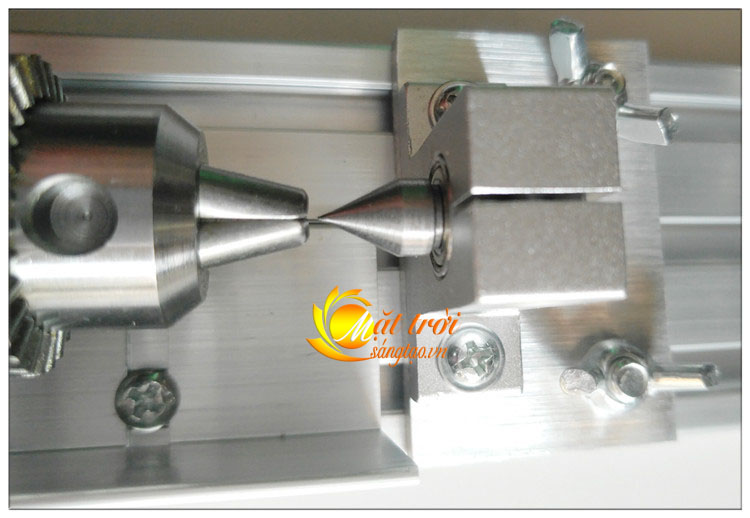

may-tien-mini_12 may-tien-mini_13 may-tien-mini_14 may-tien-mini_16

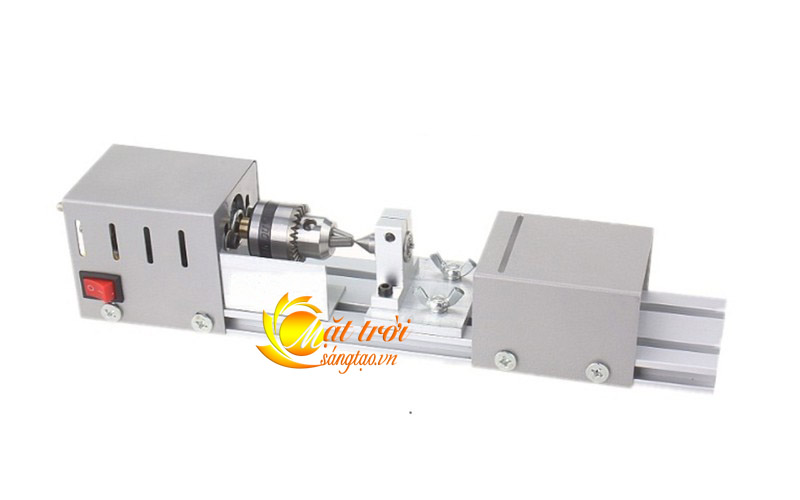

MÁY TIỆN MINI HIỆN ĐÃ ĐƯỢC NÂNG CẤP LÊN VỎ BẢO VỆ BẰNG NHỐM (giá không đổi)

phu-kien-may-tien-mini_9



Phụ kiện bán thêm (không kèm theo máy):

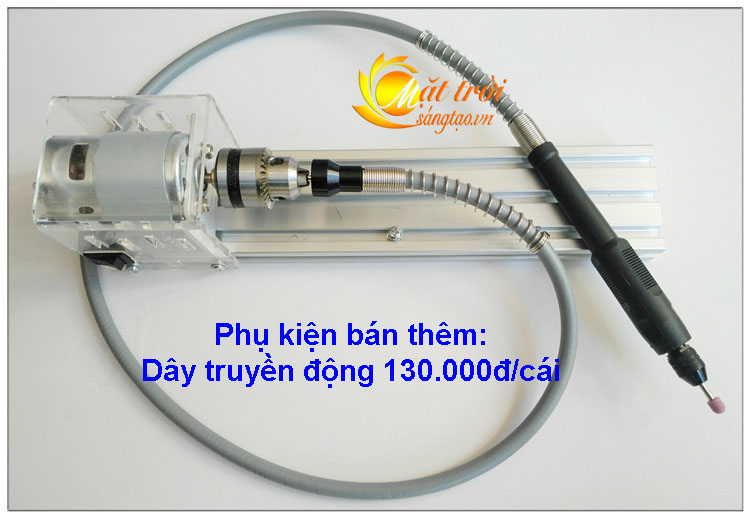

1. Dây dẫn truyền động: 130.000đ/cái

Kết nối với đầu kẹp mũi khoan để lắp các mũi mài, mũi khắc

may-tien-mini_15

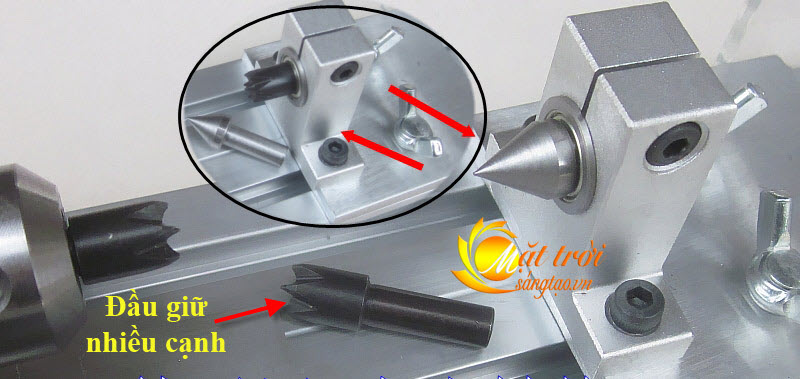

2. Đầu giữ nhiều cạnh máy tiện mini: 45.000đ/cái

phu-kien-may-tien-mini_8

phu-kien-may-tien-mini_5

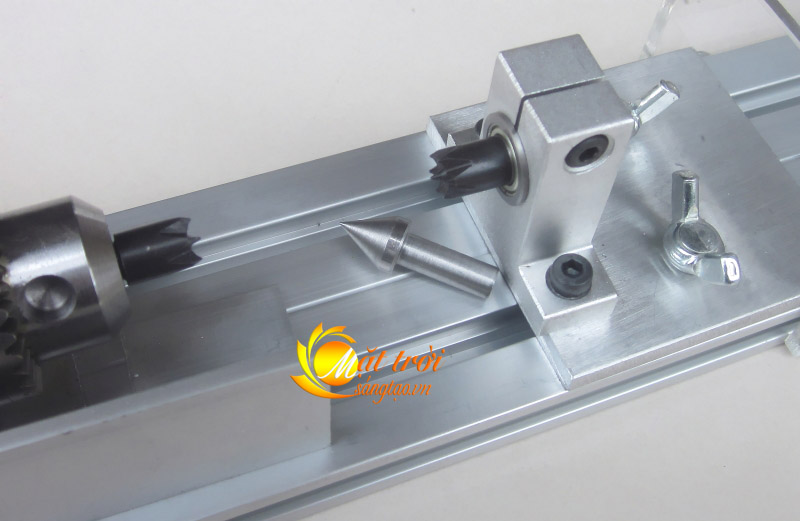

phu-kien-may-tien-mini_7

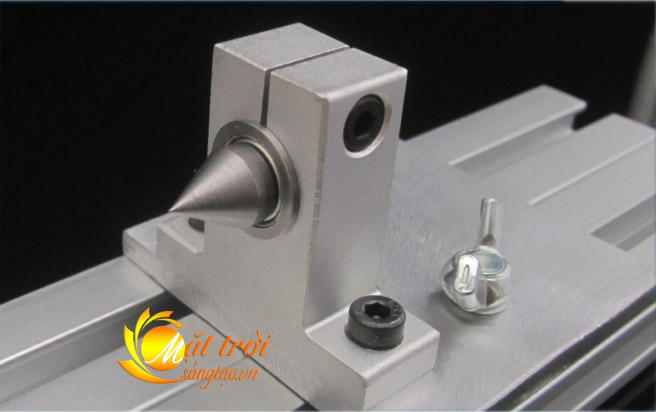

3. Phụ kiện cố định đầu giữ nhọn máy tiện: 150.000đ/cái

(Phụ kiện này đã kèm theo máy bộ máy tiện, nếu mất thì mua thêm)

phu-kien-may-tien-mini_6

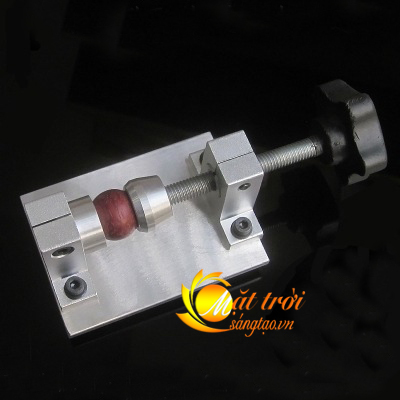

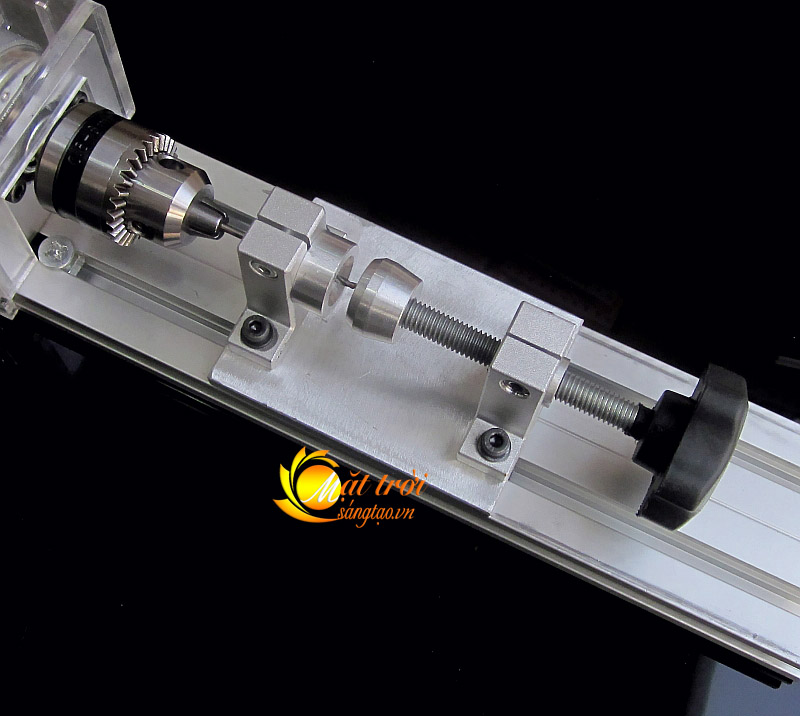

4. Phụ kiện khoan lỗ hạt đồng tâm máy tiện: 180.000đ/cái

(Dùng để kẹp giữ và tịnh tiến hạt tròn, khoan lỗ một cách chính xác)

phu-kien-may-tien-mini_1 phu-kien-may-tien-mini_3

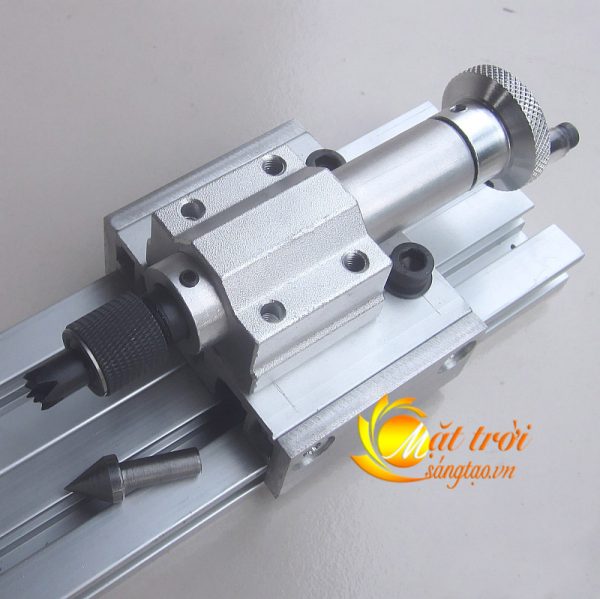

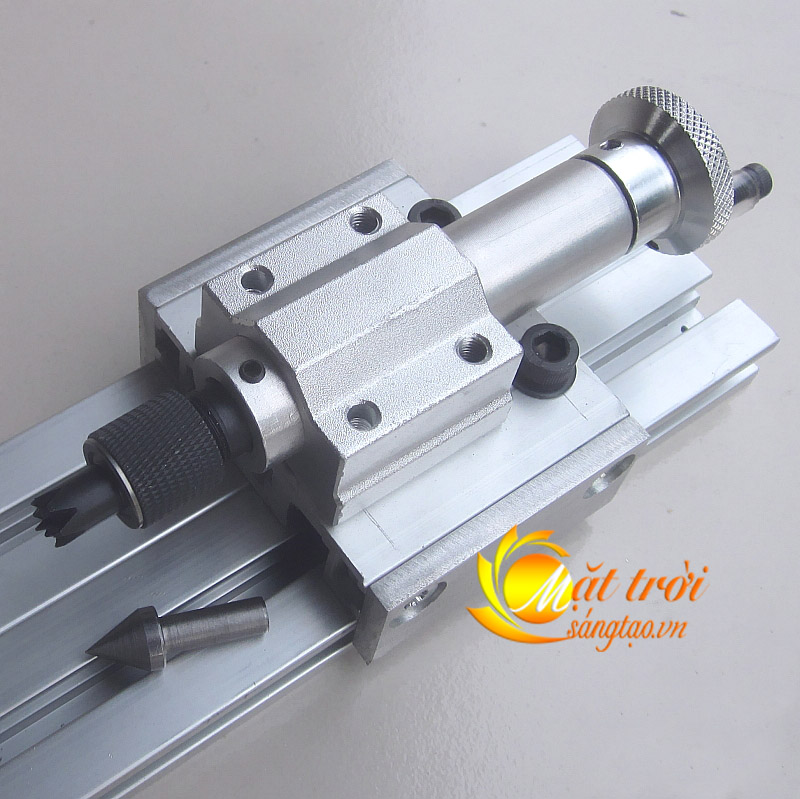

5. Bàn trượt tịnh tiến máy tiện: 180.000đ/cái

(Dùng để tịnh tiến đầu giữ một cách chính xác với tay quay)

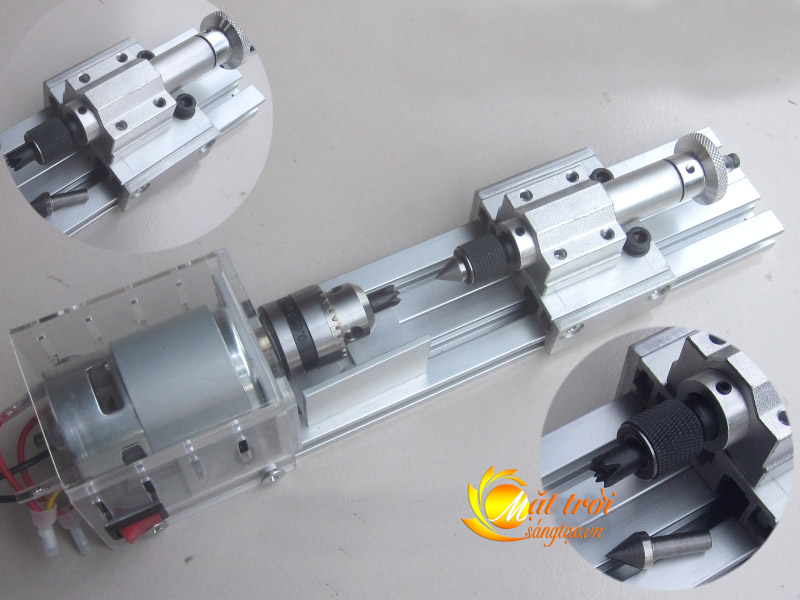

phu-kien-may-tien-mini_2 phu-kien-may-tien-mini_4
