Bộ công cụ gia công mini 6in1


Bộ công cụ gia công đa năng mini 6in1 (máy cưa, mài, khoan, tiện gỗ, tiện kim loại, phay)…..

Mã: bccgcm Danh mục: Từ khóa:

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công đa năng mini 6in1 (máy cưa, mài, khoan, tiện gỗ, tiện kim loại, phay)…..
Đây là dòng máy đa năng siêu mini ,gối đỡ bộ phận chính chạy bi ,các bộ phận chịu lực chính bằng kim loại .
Về cơ bản thì có thể lắp thành máy : phay ,tiện ,mài ,khoan ,cưa ….ngoài ra thì lắp được các máy theo sự sáng tác của mọi người .

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

6 in 1 DIY Mini Lathe,Desk machine tool,CNC machine , for DIY and education

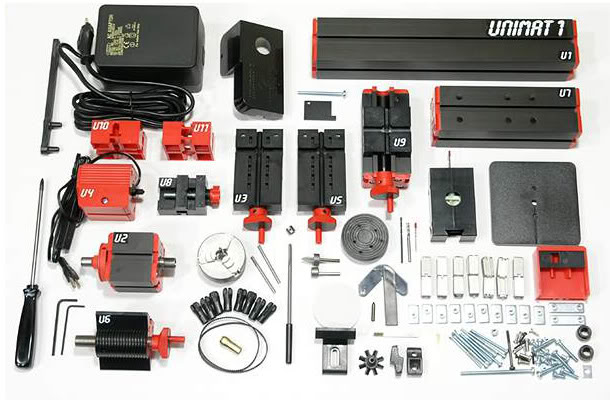

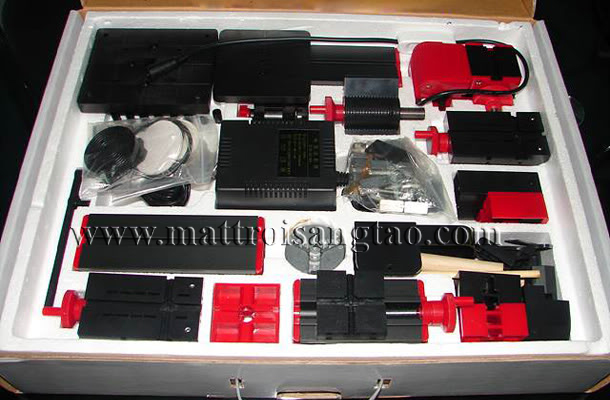

make up of : 1) Jig-saw 2) Grinder 3) Driller 4) Metal lathe 5)Wood lathe 6)Milling



 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

Features

Headstock speed: 2,000rpm
Motor input: 12VDC
Max. Cutting diameter: 45mm(bigger diameter is possible with intermediatepiece
Center distance: 135mm(with accessories extra long machine bed can longer to 360mm)
Material: Carbon steel, Aluminum, ABS
All types of wood (also hard wood) can be processed
Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard). also Can process integrated circuit,acrylics,wood,plastic,gold,silver,copper,steel,aluminum,and so on.
Every suitable chisel and gouge can be used
weight:4.5KG

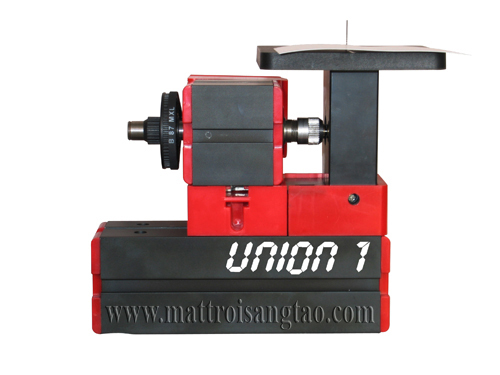

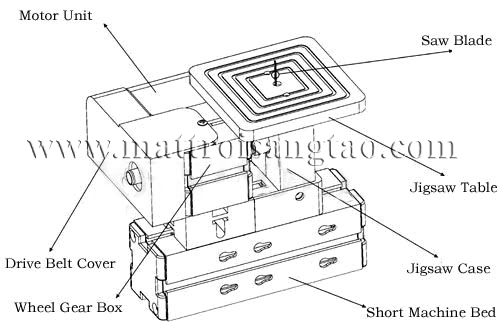

Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Support power: 14.5VDC/2A/29W
4) Table size: 90 x 90mm
5) Stroke of the jigsaw: 4mm
6) Material: Carbon steel, Aluminum, ABS
7) Max. thickness of cut: hardwood: 4mm, polywood: 7mm, softwood: 18mm, sheet metal: 0.5mm, plexi-glass: 2mm
8) Maximum measurements on 3D (L/W/H cm): 15/10/14
9) Net weight: 0.72kg
10)It is specially designed that it is very safe when operating

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

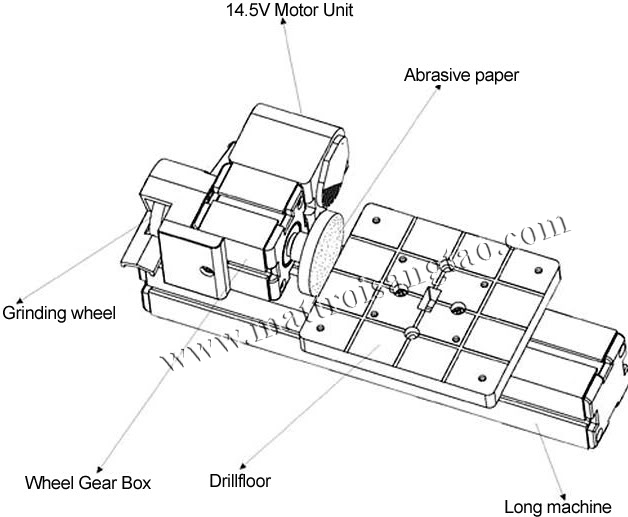

GRINDER
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Material: Carbon steel, Aluminum, ABS
5) Can sanding paper: diameter 49mm, grain 100
6) Can process everything that is used in model making
7) Maximum measurements on 3D(cm L/W/H): 28/5/10
8) Net weight: 0.75kg

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

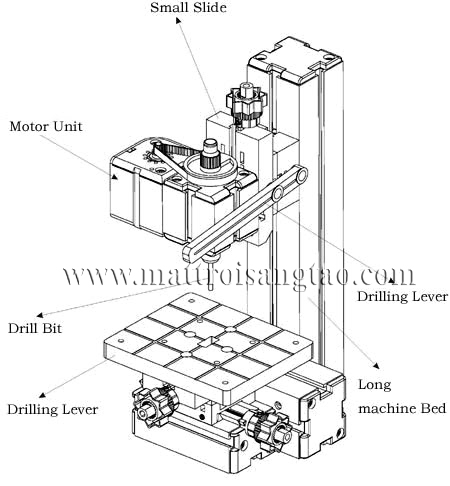

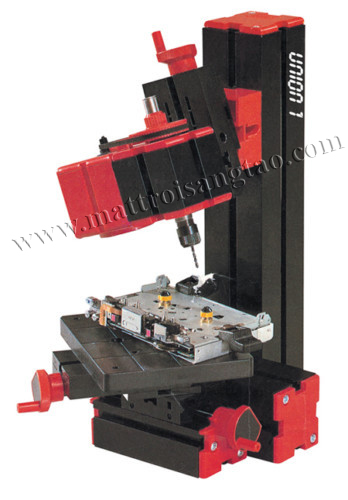

DRILLER
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Slide travel: 50 and 20 respectively
5) Stroke: 25mm
6) 8 collects from: 0.5 to 6 mm
7) Table size: 123 x 100mm
8) Working radius (distance between drill and machine bed): 71mm
9) Material: Carbon steel, Aluminum, ABS
10) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
11) Maximum measurements on 3D(cm L/W/H): 15/15/28
12) Net weight: 1.46kg

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

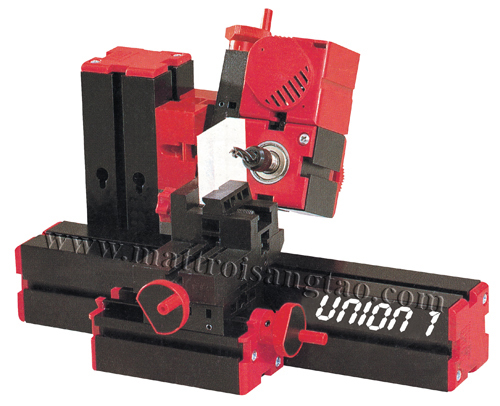

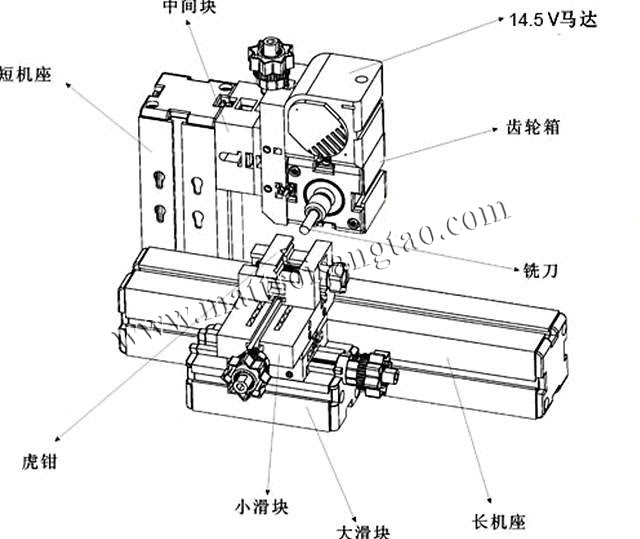

Miller
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Slide travel: 30 and 50mm
5) Collets from 0.5-6mm milling cutter
6) Vice capacity: 25 x 25mm
7) Material: Carbon steel, Aluminum, ABS
8) Can process hard wood strips (beech-tree, nut-tree), wooden bars (max. 20mm diameter)or plastic and soft metal.
9) Do not touch the turning tools, it is very dangerous
10) Maximum measurements on 3D(cm L/W/H): 28/18/15
11) Net weight: 1.45kg

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

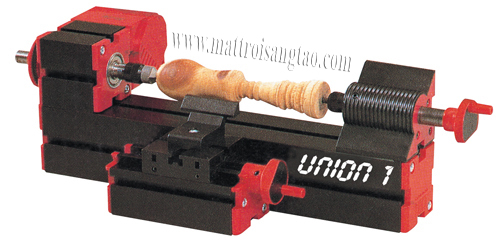

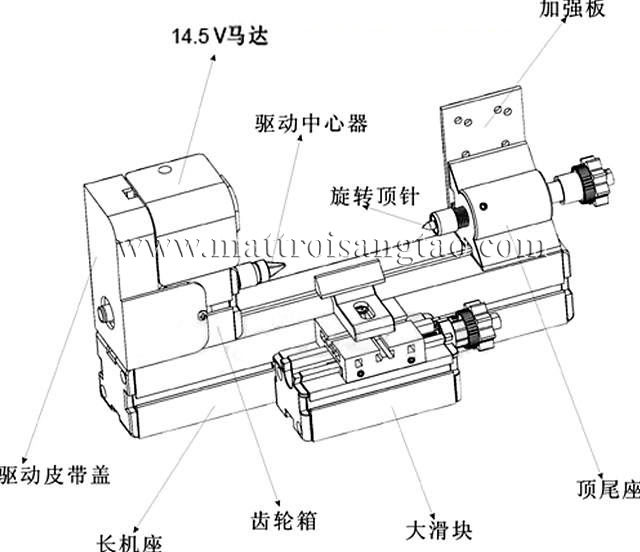

Wood Lathe
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Max. Cutting diameter: 45mm (bigger diameter is possible with intermediatepiece)
5) Center distance: 135mm (with accessories extra long machine bed can longer to 360mm )
6) Material: Carbon steel, Aluminum, ABS
7) All types of wood (also hard wood) can be processed
8) Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard)
9) Every suitable chisel and gouge can be used
10) Maximum measurements on 3D(cm L/W/H): 28/10/10
11) Net weight: 1.28kg

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

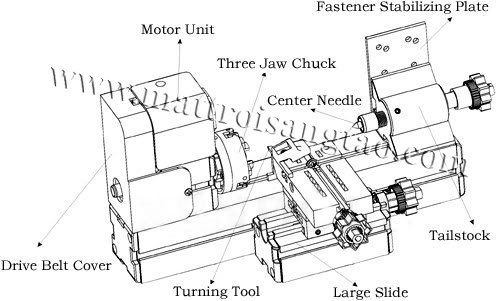

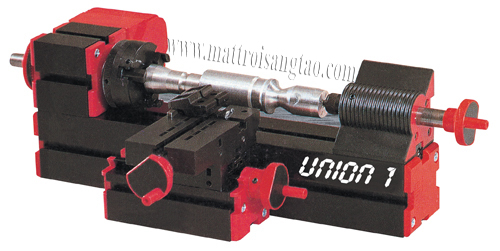

Metal lathe
Technique Data:
1) Motor speed: 20,000rpm
2) Headstock speed: 2,000rpm
3) Motor input: 14.5VDC / 2000mA
4) Tree 3-jaw chuck (self-centering)
5) Max. Cutting diameter: 20mm(bigger diameter is possible with intermediatepiece)
6) Center distance: 135mm(with accessories extra long machine bed can longer to 360mm)
7) Material: Carbon steel, Aluminum, ABS
8) Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
9) Maximum measurements on 3D(cm L/W/H): 28/10/10
10) Net weight: 1.35kg

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

 Bộ công cụ gia công mini 6in1

Bộ công cụ gia công mini 6in1

FQA:
Q: What is the mini-machine? What can it do?
A: It is a delicate combination of processing units, suitable for making models or samples, technical education, product creation and invention, DIY and so on.
Q:What functions do Mini-machine have?
A:1,Jigsaw 2,grinder 3,Driller 4,wood lathe 5,metal lathe 6,Miller.
Q: What power supply does mini machine use?
A: covert from 220V DC power to DC14.5V.
Q: What is mini-machine made of?
A: base is made of advanced aluminum alloy, and it`s durable and not deformed, and other shell parts are made of PC plastic, some chucks are made of metal or copper.
Q: How long is the life?
A: Ten years will not be damaged under normal use.
Q: Can it process metal materials ?
A: All the soft metal materials can be processed, such as gold, silver,copper, aluminum etc. In addition, such as acrylic, circuit boards also can be processed.
Q: Is this mini machine heavy and big?
A: The maximum length is 30CM, package weight is 4.5 kg.
Q: Does this machine have the age limit requirement?
A: Our customers are from 6-76 years old.
Q: how long could the machine be used continuously?
A: In theory DC motor can be used continuously for 300 hours,but it is recommended to shutdown to save power and increase the frequency of use or life when you don`t operate it.
Q: What`s the minimum hole which you can drill with the drilling?
A: Standard is 0.5mm hole. 0.4mm or 0.3mm hole is OK but you need to buy special accessories.
Q: How thick material can you choose for the sawing?
A: wood 7.0mm below; aluminum, copper,circuit board 1.2mm below; acrylic board 2.0mm below
Q: Which parts are the consumed ones?
A: 1, belt 2, turning tool 3, drill 4, Mills 5, saw blade6, saw drive box 7,screw 8, motor fan.
Q: Is sawing machine safe?Does it injure the hand?
A: absolutely safe, even if you accidentally touch the saw blade, the hand will be safe.
Q: Why Sawing not injure the hand?
A: Because there is special-stroke design, stroke is only 3mm,it can saw off the hard objects, but the hand is soft and flexible, it will absorb the stroke, so it does not hurt the hand.

Một sản phẩm của sự khéo tay và kiên nhẫn:
